Here Comes Another Multi-Part How To!
If you own a DVD, you should be able to make a backup copy and you should be able to watch it on the devices you own. Here is one of the easiest ways to do so. It takes several steps but I have assembled all of the software you need in this handy 5 meg zip file: RipIt4Me
In this lesson we are going to make an exact 1-to-1 copy of your DVD. .
1) Download the RipIt4Me bundle – Save it to your desktop or wherever you save zip files.
2) Unzip the zip file. You will have 3 items, a READ ME, a “RipIt4MeWithInstaller” folder and a “RipIt4MeWithoutInstaller” folder. Read the READ ME.
3) Create a Folder on your Desktop called “DVDs” or something similar. This is where the working copies of the DVDs will be stored. We will delete them at the end to free up the space.
4) Pop a DVD in your DVD drive and close whatever pop-ups and programs it tries to run. (You can also hold down the SHIFT key when you insert the DVD. This will tell windows not to run any programs for the DVD.)
5) Open the “RipIt4MeWithoutInstaller” and select RipIt4Me
a) You might get a pop-up saying you have an older version of one of the programs like DVD Decrypter. You can ignore it and everything will work fine, of you can click YES and get the latest version – just replace the file in the “RipIt4MeWithoutInstaller” folder with the newer copy.
b) If RipIt4Me asks for the location of another program point it to the correct one in the “RipIt4MeWithoutInstaller” folder
6) You should now see the RipIt4Me Screen:
There are two ways to proceed, we can do the 1-Click Mode or the Wizard Mode. If you are going to do the 1-Click mode you need to check the settings in advance so click on LOGS/SETTINGS and select PREFERENCES.
We need to tell RipIt4Me where it’s helper programs are.
1) Check “Base path for target rips”
2) Check “Path to Decrypter:”
3) Check “Path to Shrink:”
When I say “Check” I mean click the box with the period in it and tell RipIt4Me where the helper programs are. (They are in the “RipIt4MeWithoutInstaller” folder – Remember?)
Here is a screen-shot of my settings. Note that almost all of the boxes are checked:
So our DVD is in the drive, Settings have been checked, let’s have at it! Click 1-Click Mode.
The program will read the DVD drive and fill in the blanks.
1) Make sure your “Target Directory for DVD files” is correct. (We set this up above as “1) Check “Base path for target rips“)
2) Click “Make DVD jump to menu upon insertion“

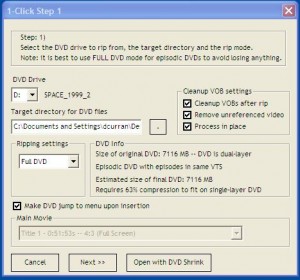

Here I am backing up a Space 1999 DVD for safe keeping:
Hit Next, You might get a pop-up about virtual player and setup panel – just hit OK:
What the program is doing is telling you that you need to set the language. Assuming you speak English click the “en” in the box on the left and the three option boxes will change to English. The DVD will also be region free! You should only have to do this the first time you run these programs.
Hit OK and DVD Decrypter will fire up.
If you get any weird errors about PSL (Protected Sector List) don’t sweat it. Hit Ok, Yes, etc.
In the worst case it will throw you back to the RipIt4Me menu – Just click the 1 Click Mode button again and DVD Decrypter will work on the second go around. It may or may not auto-run when you get to the screen that looks like this:
You can see the log file in the bottom Window. All the encrypted crap has been detected:
19:25:30 Found 1 DVD±RW!
19:25:34 Protected Sectors List Imported Successfully!
19:25:34 20 areas have been marked as ‘suspect’.
19:25:34 Dummy sectors will be inserted where necessary.
In the top window of the image above, highlighted in blue, you see the .VOB files. The bigger VOBs are the movie parts. The smaller VOBs are menus and previews and special features. Anyway – If DVDDecrypter is waiting – click:
We are now decrypting the DVD and making a copy of the files in a temporary directory. We will still have to take those files and create something watchable. More on that in a moment.
If you got any weird errors up to this point or your laptop tried to hibernate, just (turn off hibernation) start again. Be patient, it will work. Just reply to any errors you get, go back to the RipIt4Me screen and click 1 -Click Mode. I actually had all that happen to me while writing this. I am using a virgin laptop with Windows XP on it and muttered WTF a few times, but like I said, just reply to any errors you get, go back to the RipIt4Me screen and click 1 -Click Mode again.
When everything is chugging away as it should it will look like this:
Go get a cup of coffee, this will take a few minutes . . .

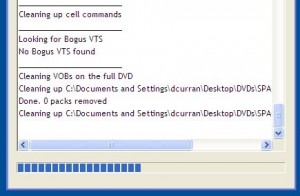

Once DVD Decrypter finishes, RipIt4Me will start cleaning up the VOB files and making final preparations:
What we have accomplished up to this point is to break any encryption that was on the DVD and make copies of the files that make up the DVD to our hard drive. But those files alone can’t really be read by anything. We want to “recompile” all this separate files back into a single file – an ISO.
Ok, I’m Lying – VLC player will play them. But the files are huge and have ugly names:
Let’s finish making our disk image, our ISO file.

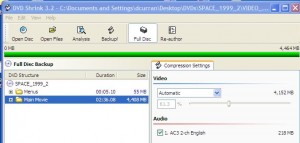

When DVD Decrypter is finished DVD Shrink will start up, scan the video and open up this window:

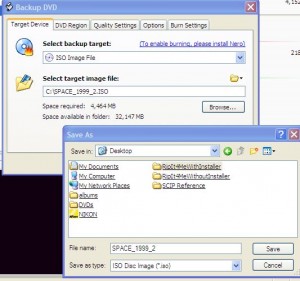

Select BACKUP!, then change the Select Backup Target to ISO Image File and select where you would like to save the ISO image file to. Like So:
The program was a little uncooperative here when I tried to save the ISO to my desktop so I selected MY DOCUMENTS. I’ll just move it later.
You will now see your DVD’s video playing in fast motion:
Once you are done,
- Close down any programs we used.
- Delete the temporary DVD files from your hard drive.
- Locate the ISO image file.
That ISO image file is a direct 1-to-1 back up of your DVD. Store it somewhere safe on your hard drive.
How to restore or copy the ISO file to something watchable will be addressed in . . .
This procedure takes a while the first time, but print these directions out and follow along. I haven’t met a DVD yet that I couldn’t back up this way. You’ll get the hang of it and be backing up your Sigmund and The Sea Monsters DVDs in no time.
Did you notice we never discussed the “RipIt4MeWithInstaller”folder? Same programs, the difference was way back in Step 2 – Read the Read Me file.
Problems? Questions? Suggestions? Please leave ’em in the comments!
